528led/m COB Led Strip Light 3000K DC12V Ultra slim 3MM Width IP20/IP65 Rated With CE/ROHS For Indoor Decorations

Description

ADLED LIGHT 528led/m COB led strip light. Each meter is composed of 528 lamp beads. The very high-density lamp beads cover the entire light strip, breaking the traditional SMD light strip design of one lamp bead one by one. Make the light strip brighter and without spots. The extremely thin 3mm PCB board width can be hidden in every corner without destroying the original beauty. The low voltage of DC12V makes the use of light strips safer.

Features

Designed with Chip-on-Board, more chips on PCB to reach even and uniformlighting effects.

Up to 528 chips per meter, only 1.89mm distance between chips.

Ultra slim in 3mm width, more applications.

Low voltage input in 12Vdc.

IP20/IP65 optional.

Dimensions

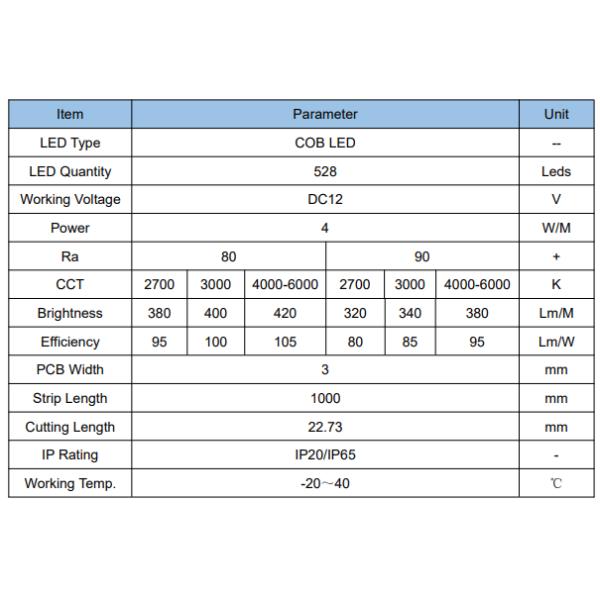

Technical parameters

Installation Ways

￭ The max running length is 1 meters, for over 1 meters please connect in parallel.

￭ Make sure of the total watts of COB Strip lights is less than 80% of the power supply'smax output.

￭ Match the polarities according to the mark ('+' and '-') in the PCB while connecting.

Package

Applications

--Used in linear lights as lighting source; used for indoor decorations.
